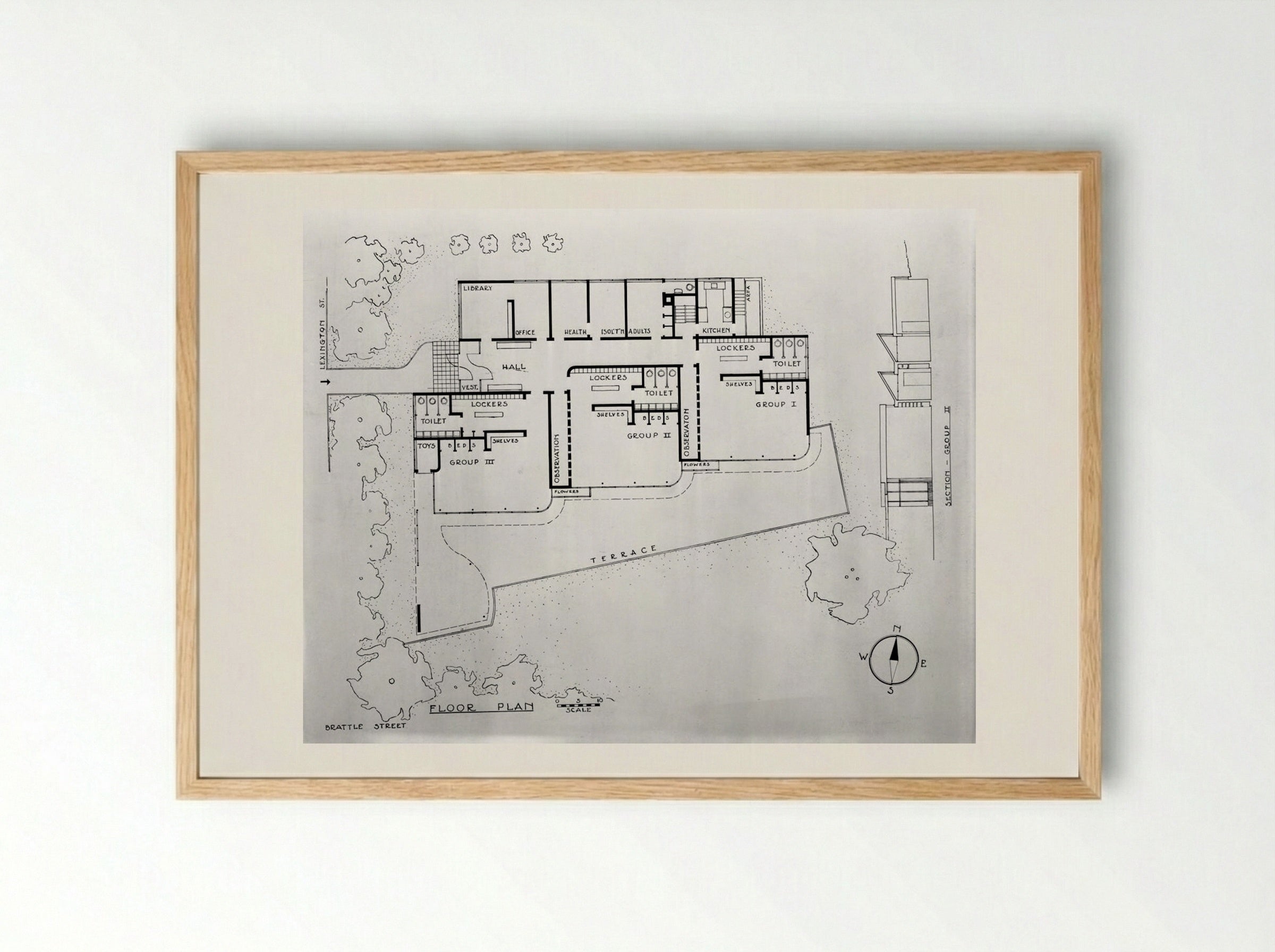

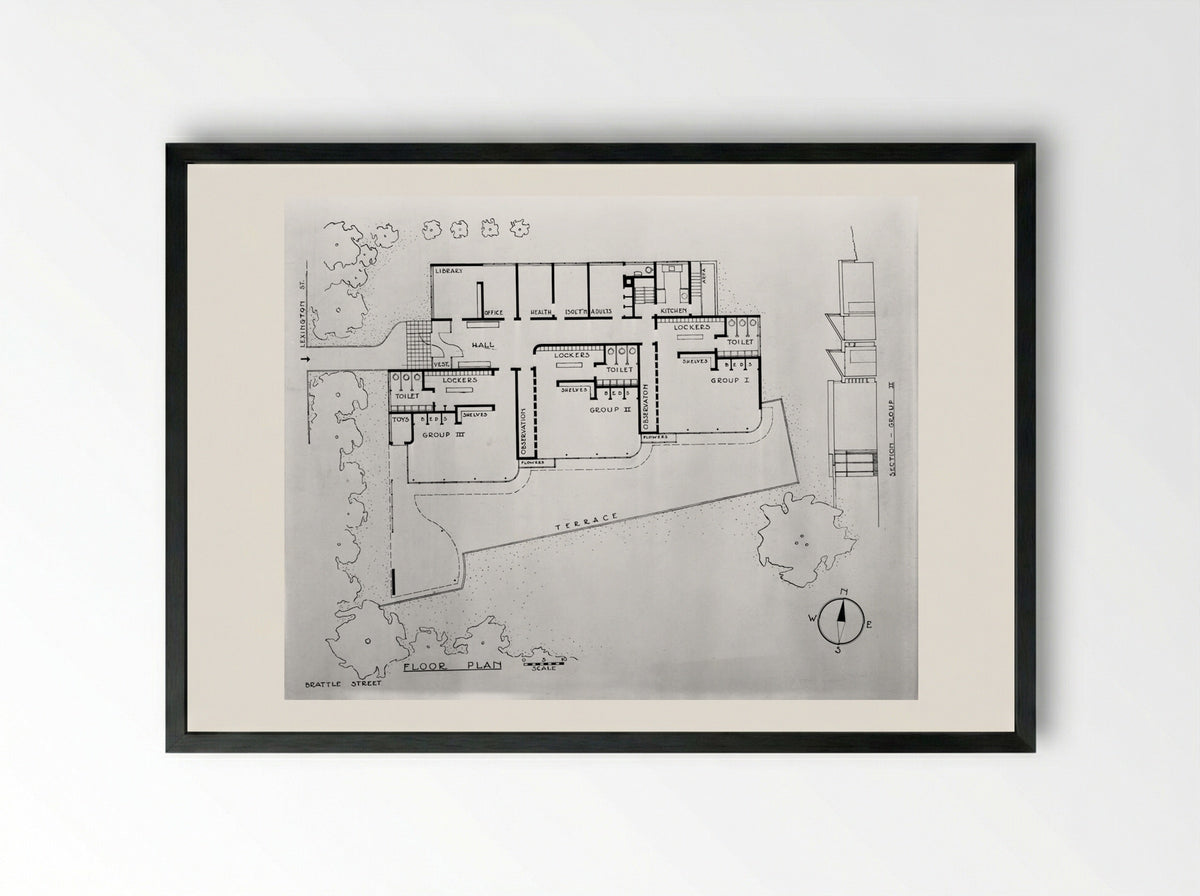

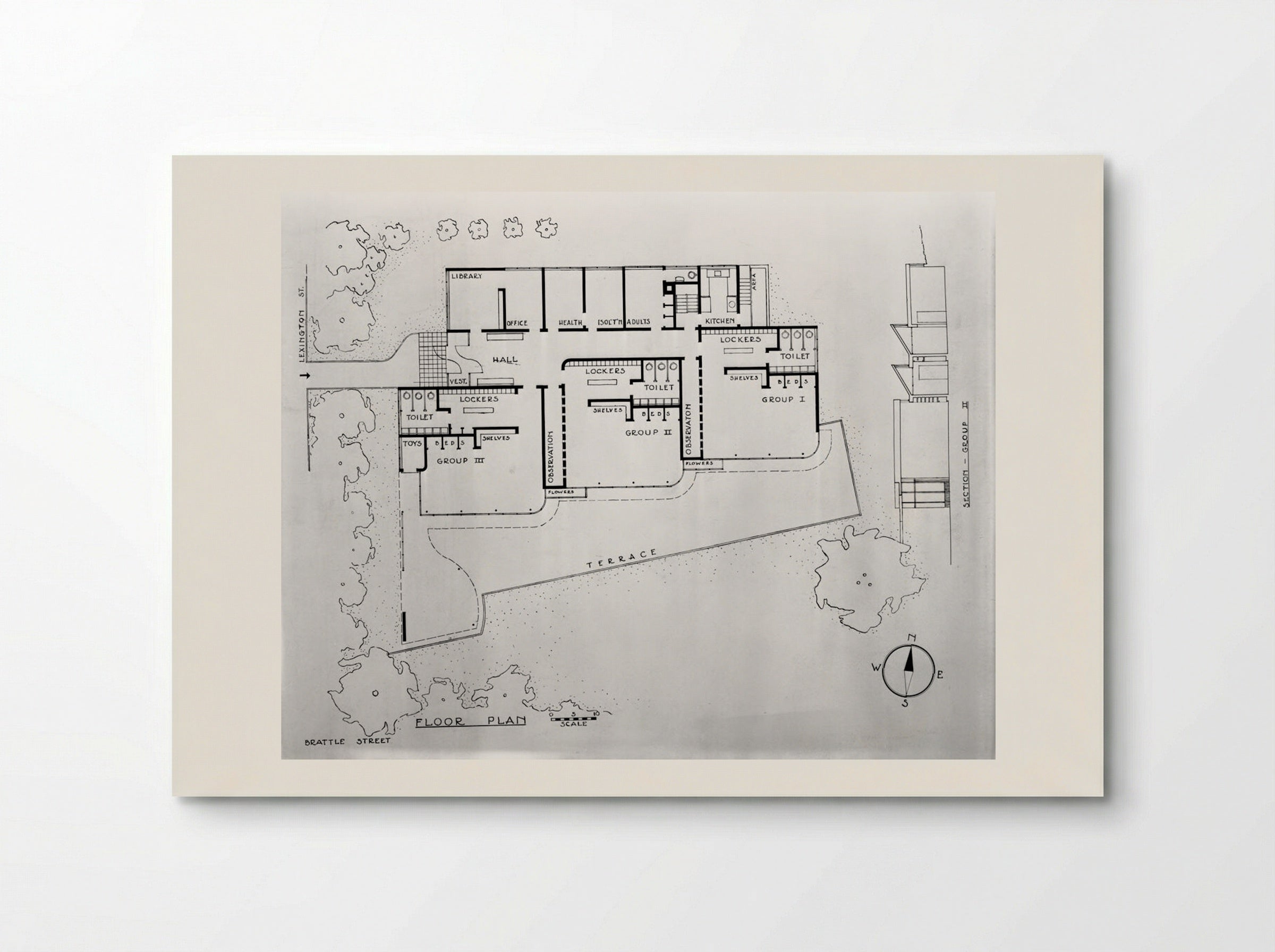

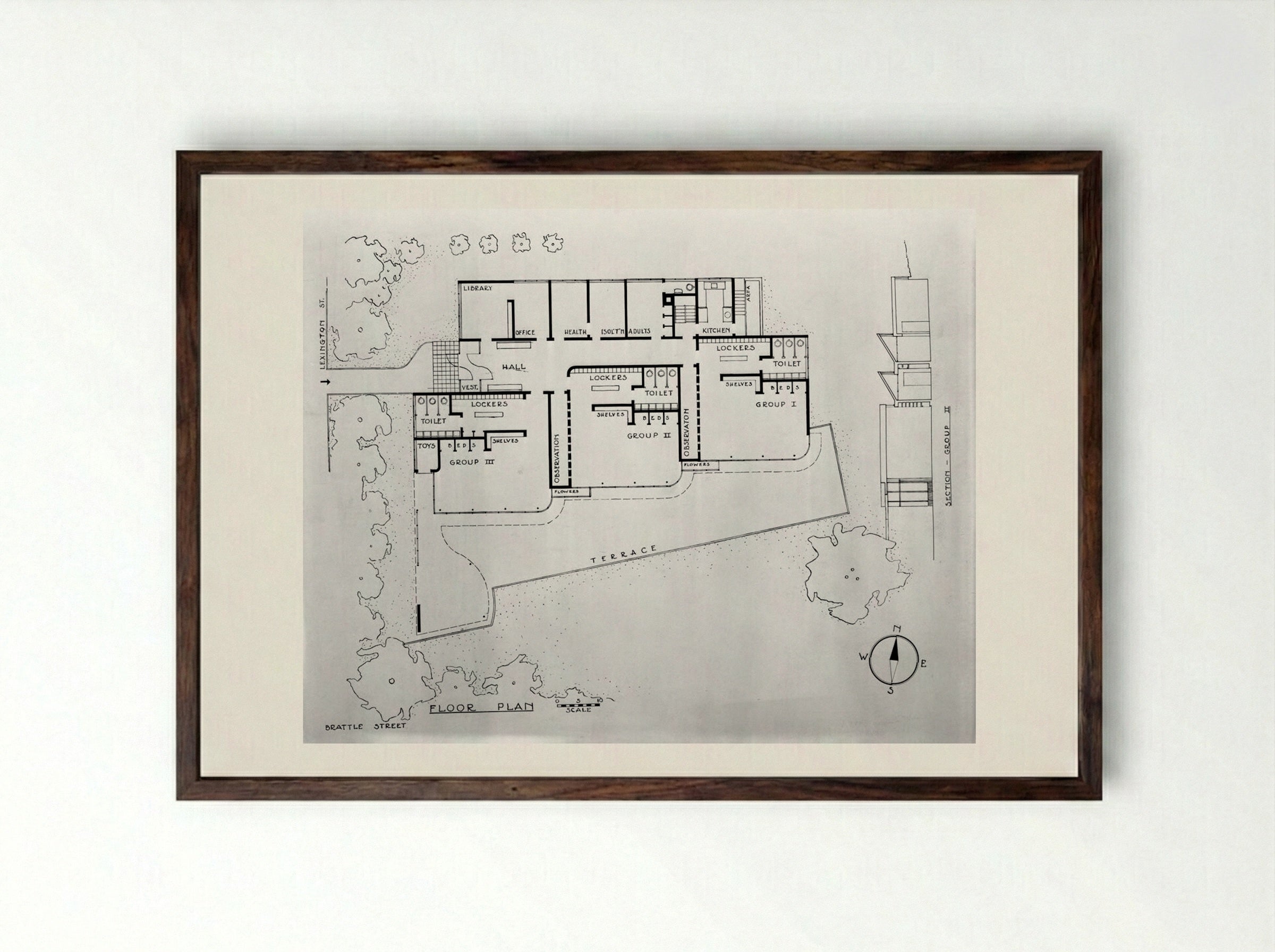

A precise architectural floor plan and section for the Caryl Peabody Nursery School, drafted by Walter Gropius in 1937.

This architectural drawing by Walter Gropius details the floor plan and section for the Caryl Peabody Nursery School in Cambridge, Massachusetts. Produced in 1937, the work reflects the functionalist principles Gropius brought to the United States after his departure from the Bauhaus. The plan demonstrates a clear prioritisation of spatial efficiency and child-centred design, featuring distinct zones for different age groups, dedicated observation areas, and direct access to outdoor terrace space.

The drawing is executed with precise, clean lines that define the structural layout without unnecessary ornamentation. Gropius employs a rational approach to the building footprint, ensuring that circulation paths are logical and that the interior spaces benefit from natural light and ventilation. The inclusion of a section view on the right side provides a vertical understanding of the building, illustrating the relationship between the interior floor levels and the exterior ground plane.

As a document of mid-century educational architecture, this plan captures the transition of European modernist ideas into the American context. The layout is stripped of historical artifice, focusing instead on the requirements of the occupants. The inclusion of specific labels, such as the library, kitchen, and isolation room, reveals the comprehensive nature of the school programme. This print offers a view into the methodical process of an architect who sought to align built environments with human needs. The clarity of the drafting style makes it an excellent example of technical documentation from the period, suitable for those interested in the history of design and the development of modern educational facilities.
